TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare

Product Categories
Team Source Display
Contact Now

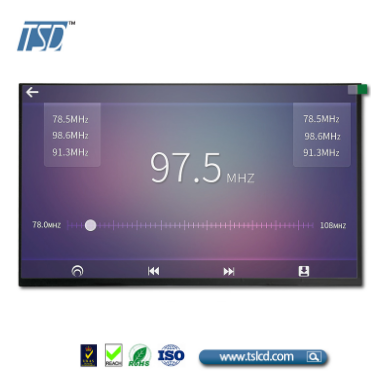

TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare

Place of Origin : Guangdong, China

Brand Name : TSD

Packaging Details : HD 13.3inch TFT LCD Panel 1920X1080 with TTL(EDP) 30pin Interface Display LCD
Packed in anti-static bag each,a certain quantity in one carton

Supply Ability : 50000 Piece/Pieces per Month

MOQ : Negotiable

Price : Negotiable

Type : TFT, TFT LCD

Display Size : 13.3inch

Supplier Type : Manufacturer

Resolution : 1920X1080

Backlight : 56LEDs, 160mA, 21.5V

Viewing direction : All O'clock

Interface Type : TTL(EDP)

Outline Dimension : 306.2x190.62x4.5mm

Surface Treatment : Anti-glare, coating : 3H

Active Area : 293.76x165.24mm

Brightness : 220 cd/m2

Pixel Pitch : 0.153(H)*0.153(V)

Port : Shenzhen/Hong Kong

Contact Now

HD 13.3inch TFT LCD Panel 1920X1080 TTL(EDP) 30pin Interface LCD Display Module
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
Item
Specification
Display Mode
13.3''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST133FHPD-01
Resolution
1920x(RGB)x1080
Outline Size
306.2x190.62x4.5mm
Active Area(WxH)
293.76x165.24mm
View Direction
All O'clock
Pixel Pitch
0.153x0.153
Interface
TTL(EDP)
Backlight
56LEDs, 160mA, 21.5V
Surface Lumiannce
220nits
Surface Treatment
Anti-glare, coating : 3H
Operating Voltage
3.3V
Operating Temperature
-0℃~50℃
Storage Temperature
-20℃~60℃
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
More detailed datasheet can be provided! Click here to contact us!
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
About us
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
Production Process
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
Application
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
Exhibition & Certificate
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
Packing & Delivery
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
TTL Interface TFT LCD Screen 13.3 220cd/M2 Brightness Antiglare
